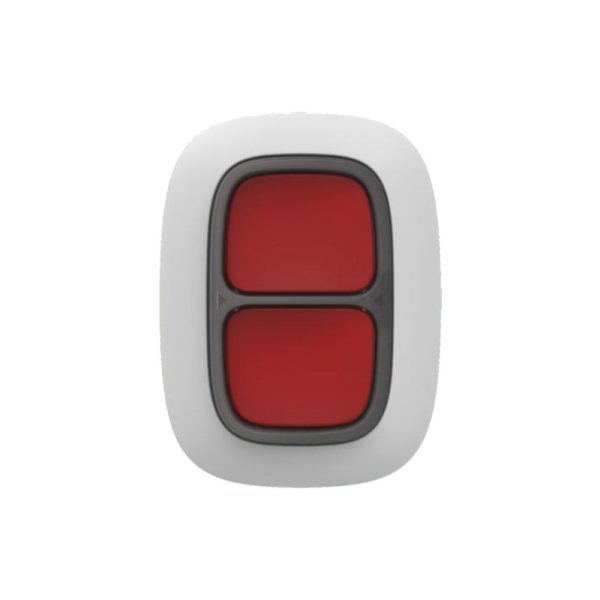

Ajax Double Button White

R672.00 Incl. VAT

The Ajax DoubleButton is a wireless double button multi-scenario remote. Easily program the remote to notify your armed response company of an intrusion / panic and with the smart scenario feature, the device can activate all or specific sirens, run automation scenarios, trigger a smoke machine, close electric locks or lower roller shutters.

The device transmits a signal to the hub via Jeweller, a two-way radio protocol communicating at a range of up to 1.3km. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency and when the air is jammed it notifies users as well as the security company.

SKU: 1938103-79-WH1 Category: Tags: ,

Description

Ajax Double Button White – Wireless Hold-Up Device

No accidental presses

To activate the alarm, you must simultaneously press both buttons. They are stiff and parted by a plastic barrier. These measures eliminate false alarms when carrying DoubleButton in a pocket or bag.

Guaranteed alarm delivery

The hold-up device transmits a signal to the hub via Jeweller—a two-way radio protocol communicating at a range of up to 1300 meters in open areas. A flashing LED verifies the successful delivery of the DoubleButton alarm. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency, and when the air is jammed, it notifies users and a security company about the situation.

PRO-technology solution for any object

DoubleButton meets the requirements of professional European security standards and can be used in both private and commercial properties. Wireless connectivity with the hub and long communication range gives freedom in placing and allows you to carry DoubleButton around.

More than just alarms

Raising an alarm is the priority DoubleButton function. But not the only one. By transmitting an alarm signal, the hold-up device can activate all or specific sirens at the object. And also, run automation scenarios: trigger a smoke machine, close electric locks, lower roller shutters.



Ajax Double Button User Manual

Ajax User Manual

Additional information

Weight17 g
Dimensions47 × 35 × 13 mm

Technical Specifications

ClassificationWireless hold-up device
CompatibilityOperates with all Ajax hubs and range extenders (with OS Malevich 2.10)
False alarm preventionYes
Number of buttons2
Alarm transmissionNot longer than 0,15 sec
Always active (does not require waking up to use)
Jeweller radio technology

Communication range with a hub — up to 1300 m in an open area
Two-way communication
Operating frequencies — 868.0 – 868.6 or 868.7 – 869.2 MHz (depends on sales region)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hopping

Learn more about Jeweller

Power supply

CR2032 battery, 3 V
Up to 5 years

Learn more

Operating temperature rangefrom -10°С to +40°С
Operating humidityUp to 75%
Protection classIP55
Dimensions47 x 35 x 13mm
Weight17g
Warranty

Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Learn more

Service life10 Years
Complete SetDoubleButton
Pre-installed CR2032 battery
Quick Start Guide
