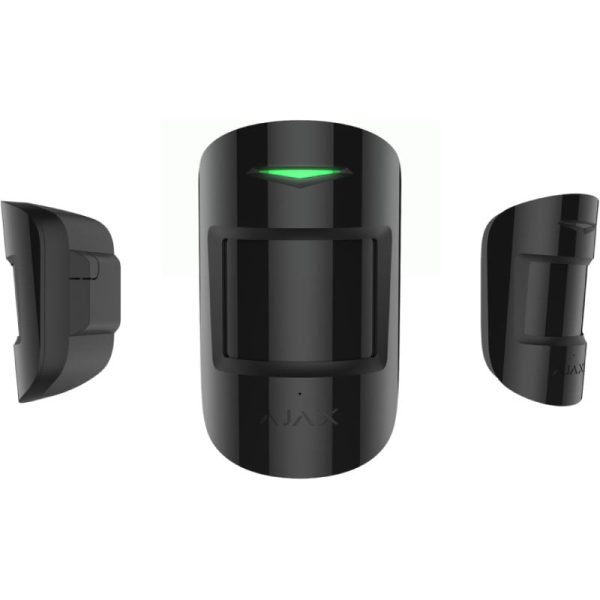

Ajax CombiProtect Black

R1,839.00 Incl. VAT

  • Combined motion and glass break dectector
  • Motion detection distance: up to 12m
  • Break detection distance: up to 9m
  • Break detection angle: 180°
  • Detection angles: Horizontal – 88.5°, Vertical – 80°
  • Recommended installation height: 2.4 m
  • Pet immunity: Weight – up to 20 kg, Height – up to 50 cm
  • Up to 1700m in an open space (in a perfect environment)
  • Operating frequencies – 868.0 – 868.6 MHz
  • Battery: CR123A battery, 3 V
  • Battery life: up to 5 years
  • Dimensions: 110 × 65 × 50 mm
SKU: 1938096-06-BL1 Category: Tags: ,

Description

Ajax CombiProtect Black

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.

  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Tampering alarm
  • Operates up to 5 years without battery replacement
  • Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm
  • Detects motion at a distance of up to 12 m and breakage at up to 9 m



Principle of operation

The device combines the functions of two detectors; motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.

Features

The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.



Ajax User Manual

Additional information

Weight92 g
Dimensions110 × 65 × 50 mm

Technical Specifications

ClassificationElectro-optical combined radio channel security detector
Device typeWireless
Installation methodIndoors
CompatibilityOperates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing elementPIR sensor, electret microphone
Alarm signal delivery time0.15 sec
Motion detection distanceUp to 12 m
Detection anglesHorizontal — 88.5°
Vertical — 80°
Time for motion detectionFrom 0.3 to 2 m/s
Recommended installation height2.4m
Pet immunityWeight – up to 20kg
Height – up to 50cm
Break detection distanceUp to 9m
Detection angle180°
SensitivityAdjustable, 3 levels
Power supplyBattery: CR123A battery, 3v
Battery lifeUp to 5 years

Learn More >

Jeweller radio technologyCommunication range with detectors: up to 1,200m line of sight
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power: up to 20mW
Black encryption based on AES algorithm
Detector polling period: 12 – 300 s

Learn more about Jeweller

Temperature sensorAvailable
Operating temperature rangefrom -10°С to +40°С
Operating humidityUp to 75%
Anti-sabotageProtection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing+
Dimensions110 x 65 x 50mm
Weight92g
WarrantyReplacement and repair for a period of 24 months of the date of sale. Batteries are not covered under warranty
Service life10 Years
Complete setCombiProtect combined motion and glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide
