Ajax MotionProtect Curtain Black

R1,579.00 Incl. VAT

  • Sensing element: Two PIR sensors
  • Motion detection distance: from 6 to 15 meters (depending on the device settings)
  • Detection angles: Horizontally – 6°, Vertically – 90°
  • Recommended installation height: 2.4 m
  • Up to 1700m in an open space (in a perfect environment)
  • Operating frequencies: 868.0 – 868.6 MHz
  • Battery life: up to 3 years
  • Protection class: IP54
  • Battery: CR123A, 3 V
  • Dimensions: 134 × 44 × 34 mm
SKU: 1938196-36-BL1 Category: Tags: , ,

Description

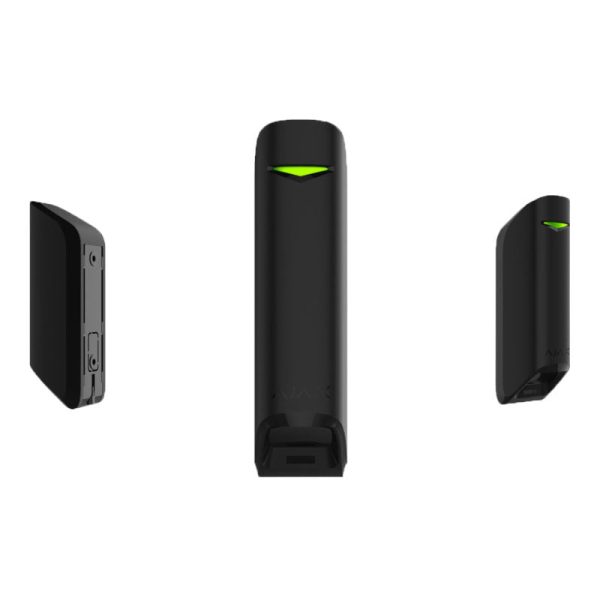

Ajax MotionProtect Curtain Black

Narrow beam indoor motion detector. Protects windows, doors, and valuables

  • Detects motion with a range of up to 15 meters
  • Works up to 3 years on the pre- installed battery
  • Transmits alarms at a distance of up to 1,700 meters away from the hub



Reliable perimeter protection

At home

With the MotionProtect Curtain detectors, you can secure the perimeter of your house and freely move indoors. If a stranger breaks in, the system will raise an alarm and call the security company.

In a garage

Burglars won’t get through the garage door undetected when MotionProtect Curtain is in action. The curtain detector will continue to operate even if the temperature drops to -10°C.

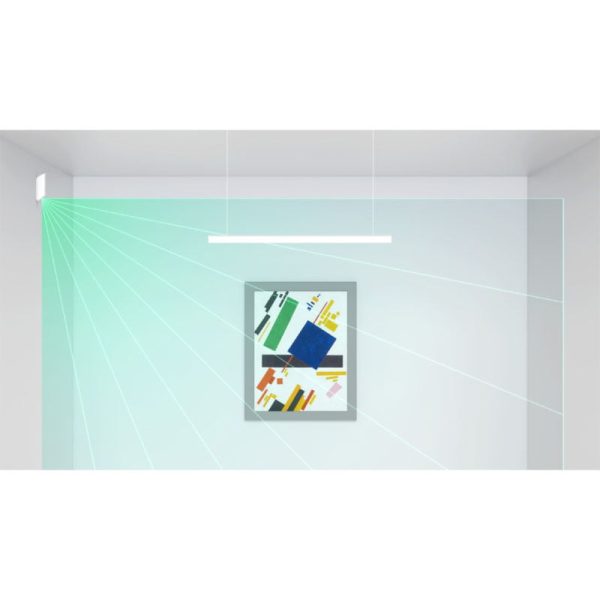

At a museum

The visitors can stroll the exhibits as they please. But if they cross the line and reach towards an artwork, an alarm will be raised.

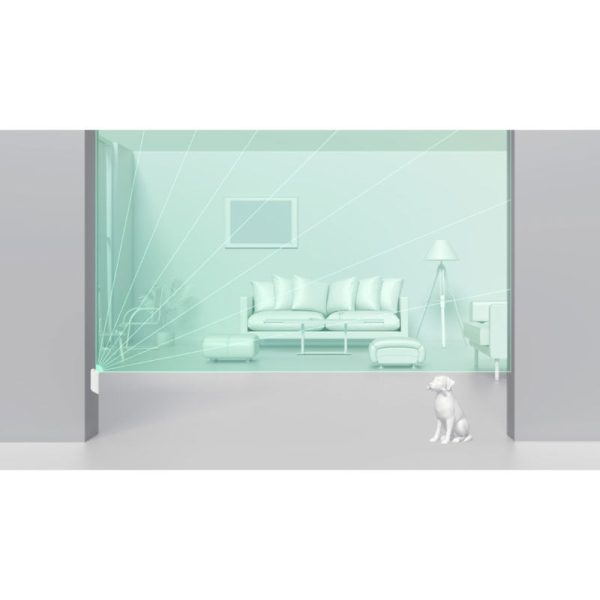

In a pet-friendly apartment

When installed correctly, MotionProtect Curtain keeps your private property safe and ignores the pets, even if they are Saint Bernards.



Proprietary optical technology

To create MotionProtect Curtain, we’ve developed an optical system of two infrared sensors and a multifaceted mirror. This system allows the detector to receive twice as much information about what is going on in the protected area and instantly react to human presence.

Rapid reaction to threats

Whether the intruder is running or sneaking, Ajax MotionProtect Curtain is always on duty. As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends an alert.

Reliable radio communication

MotionProtect Curtain connects to the hub through radio communication at a distance of up to 1,700 meters. Jeweller, the proprietary two-way communication protocol protects data transmissions with advanced encryption. In case of interference or jamming, Ajax security system switches the frequency and alerts you and your dedicated alarm response company.

Set up in 2 minutes

MotionProtect Curtain connects to the security system via Ajax app: scan the QR code, add the detector to the room, and proceed to installation.

  • QR code for simple connection

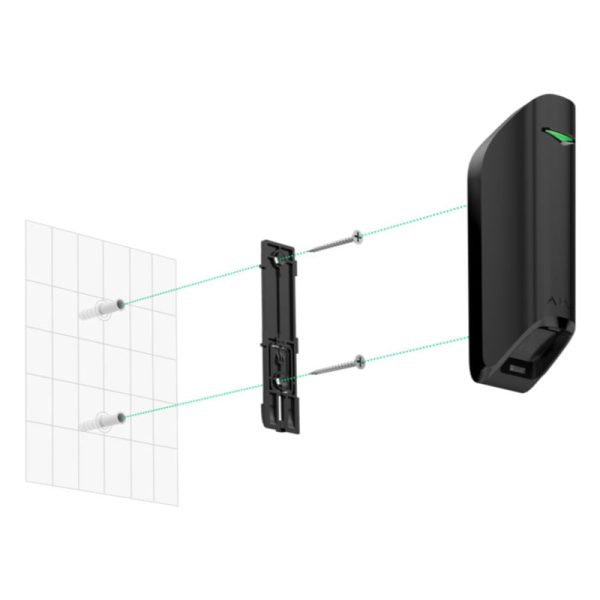

  • SmartBracket mount for quick set up
  • Mobile application for configuring and testing



Ajax User Manual

Additional information

Weight118 g
Dimensions134 × 44 × 34 mm

Technical Specifications

ClassificationRadio-interlinked photoelectric security detector
Type of detectorWireless
Motion Detection DistanceAdjustable (from 6 to 15 meters)
Installation methodIndoors only
CompatibilityOperates with all Ajax hubs, and range extenders
Sensing elementTwo PIR sensors
False alarm reductionAvailable, Correlation Signal Processing
Alarm signal delivery time0.15 seconds
Detection anglesHorizontally – 6°
Vertically – 90°
Time for motion detectionFrom 0.3 to 2 m/s
SensitivityAdjustable, 3 levels
Recommended installation height2.4 meters
Power supplyBattery: CR123A, 3v
Battery LifeUp to 3 years

Learn more

Jeweller radio technologyCommunication range with control panel: up to 1,700m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power: up to 20mW
Black encryption based on AES algorithm
Detector polling period: 12 – 300 sLearn more about Jeweller
Temperature sensorAvailable
Operating temperature rangefrom -10°С to +40°С
Operating humidityUp to 95%
Anti-sabotageFraud protection
Jamming notification
Tamper-resistant
Remote configuration and testing+
Protection classIP54
Dimensions134 х 44 х 34 mm
Weight118 g
WarrantyReplacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.

Learn more

Service life10 Years
Complete SetMotionProtect Curtain motion detector
SmartBracket mounting panel
CR123A batteries (Pre-installed)
Bracket
Installation kit
User’s guide
