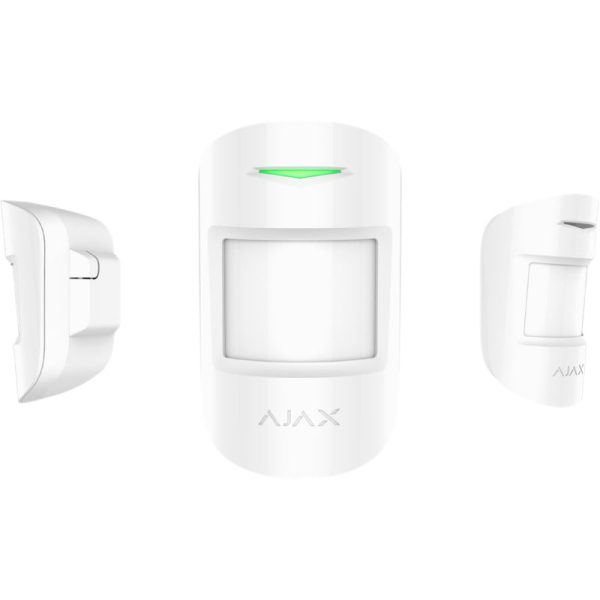

Ajax MotionProtect White

R1,184.00 Incl. VAT

Ajax MotionProtect is a Wireless Pet Friendly motion detector that notifies you of the first signs of home or office intrusion by detecting infrared levels

  • Sensing element: PIR sensor
  • Motion detection distance: up to 12m
  • Detection angles: Horizontal – 88.5°, Vertical – 80°
  • Recommended installation height: 2.4 m
  • Pet immunity: Weight – up to 20 kg, Height – up to 50 cm
  • Up to 1700m in an open space (in a perfect environment)
  • Operating frequencies – 868.0 – 868.6 MHz
  • Battery: CR123A battery, 3 V
  • Battery life: up to 5 years
  • Dimensions: 110 × 65 × 50 mm
SKU: 1938193-09-WH1 Category: Tags: ,

Description

Ajax MotionProtect White

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

  • Authentication to prevent forgery
  • Jamming detection and communication channels encryption
  • Tampering alarm
  • Operates up to 5 years without battery replacement
  • Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm
  • Accurately detects motion in heat conditions, even at a temperature of +40°С

Principle of operation

The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

Features

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Ajax MotionProtect User Manual

Ajax User Manual

Additional information

Weight86 g
Dimensions110 × 65 × 50 mm

Technical Specifications

ClassificationElectro-optical combined radio channel security detector
Type of detectorWireless
Installation methodIndoors
CompatibilityOperates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
Sensing elementPIR sensor
Alarm signal delivery time0.15 s
Motion detection distanceUp to 12 m
Detection anglesHorizontal — 88.5° Vertical — 80°
SensitivityAdjustable, 3 levels
Recommended installation height2.4 m
Pet immunityWeight — up to 20 kg
Height — up to 50 cm
Power supplyBattery: CR123A battery Power supply voltage: 3 V Battery life — up to 5 years
Jeweller radio technologyCommunication range with central unit — up to 1,700 m in an open space
Two-way communication between devices Operating frequencies — 868.0—868.6 MHz Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 sLearn more about Jeweller >
Temperature sensorAvailable
Operating temperature rangeFrom -10°С to +40°С
Permissible humidityUp to 75%
Anti-sabotageProtection against fraud Jamming detection Tamper-resistant
Remote setting and testing+
Dimensions110 х 65 × 50 mm
Weight86 g
CertificationGrade 2, CE
WarrantyReplacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Learn more >

Complete setMotionProtect motion detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set
User’s guide
