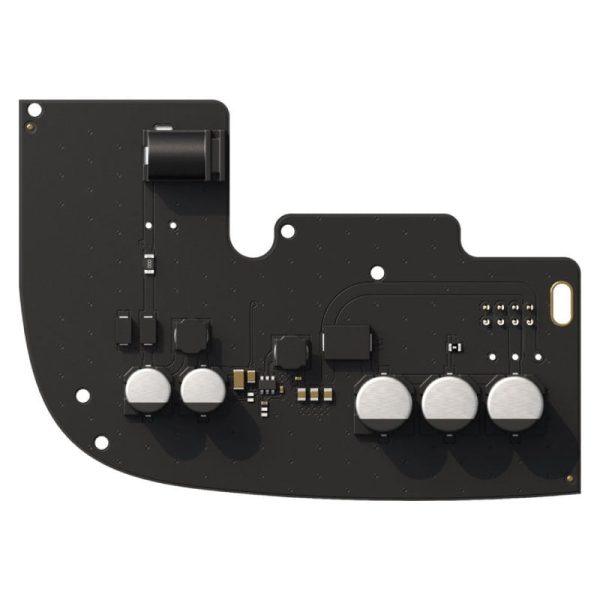

Ajax 6v PSU for Hub 2 Plus

R536.00 Incl. VAT

Protecting facilities lacking electricity

The Ajax 6v PSU is only compatible with Ajax Hub 2 and Hub 2 Plus is a power supply unit used to connect the Hub to low-voltage power sources such as a 6V power supply or portable battery.

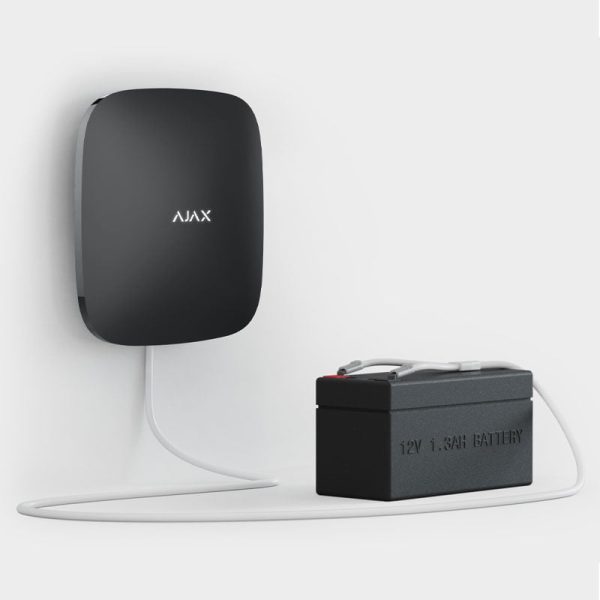

With an alternative 6 V power supply unit, your hub can operate from an external battery for years without being connected to the facility’s power grid and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation.
SKU: PSU6H2 Category: Tags: ,

Description

Ajax 6v PSU for Hub 2 Plus & Hub 2

Compatibility

The power supply unit is compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.

Installation

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.

Additional information

Weight26 g
Dimensions98 × 70 × 17 mm

Technical Specifications

CompatibilityHub 2 and Hub 2 Plus
Recommended BatteriesZinc air and alkaline batteries with 4.2-16v operating power

List of Recommended Batteries

Input voltage4.2-16 V
Output voltage4.8 V ± 5%
Switch-on voltage4.2 V ± 2.5%
Switch-off voltage3-3.4 V (depending on the load)
Maximum Input current2.2 A at 4.2 V; 0.5 A at 16 V
Maximum Output current1,5 A
ConnectionPlug socket: 6.5 x 2 mm
Plug: 5.5 x 2.1 mm
Operating temperature rangeFrom -10°С to +40°С
Operating humidityUp to 75%
Dimensions98 х 70 х 17 mm
Weight26 g
Service life10 Years
Complete set6V PSU for Hub 2/Hub 2 Plus
Terminal adapter
Quick Start Guide

Energy Consumption Calculator

Click HERE for link: Hub energy consumption calculator when operating from a 6V PSU
