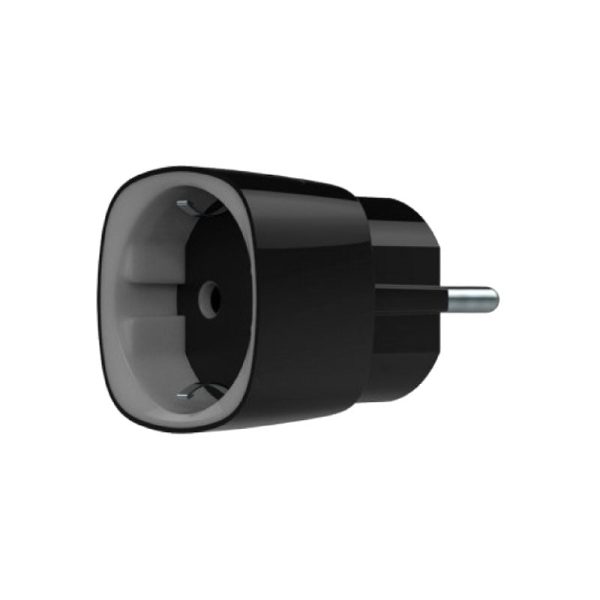

Ajax Socket Black
R1,610.00 Incl. VAT
Ajax Socket allows you to turn appliances on and off from your phone from anywhere or by schedule. It can turn on your kettle, lights and even reboot your router.
Sockets can also be set up so that when you leave your house and arm the system, all your appliances plugged into an Ajax Sockets can be automatically switched off. This means electricity savings on high energy-consuming appliances.
- Maximum load current: 11 A (continuous) or 13 A (up to 5 sec)
- Up to 1000m in an open space (in a perfect environment)
- Executes scenarios
- Relay: NO/NC
- Pulse duration: 0.5 – 255 sec
- Operating frequencies – 868.0 – 868.6 MHz
- Operating voltage: 110 – 230 VAC
- Output power: up to 2.5 kW
- Dimensions: 65.5 × 45 × 45 mm
Description
Ajax Socket Black – Wireless smart plug with energy monitor
Everything is ready for you by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your air humidifier and heat water for your bath. With only a few taps in the application on your way home.
No more worrying about forgetting an iron on
When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off: Geyser, TV and HiFi will no longer operate idly resulting in huge electricity bills.
A boost to comfort and convenience
No more hassles and worries. Socket turns on the kettle and reboots the router without you having to leave your couch. Activate the night mode at bedtime and selected lights and appliances in the house will be turned off.
Ajax Socket User Manual
Additional information
Weight | 58 g |
---|---|
Dimensions | 65.5 × 45 × 45 mm |
Technical Specifications
Classification | Smart socket |
Device type | Remote-controlled |
Installation method | In power outlet |
Compatibility | Operates with all Ajax hubs and range extenders |
Actuating element | Electromagnetic relay |
Voltage and type of external power supply | 110 – 230v, 50/60Hz |
Voltage protection | Yes, min — 184 V~ max — 253 V~ |
Output power (resistive load at 230v) | Up to 2.5W |
Relay service life | At least 200,000 switches |
Maximum current protection | Yes, 11 A if the protection is turned on 13 A if the protection is turned off |
Maximum temperature protection | Yes, +85°С The socket turns off automatically if the temperature is exceeded |
Overvoltage protection | Yes, min — 184 V~ max — 253 V~ |
Electric shock protection class | Class 1 (with grounding terminal) |
Energy consumption parameter check | Yes (current, voltage, power consumption) |
Alarm signal delivery time | 0.15 sec |
Maximum load current | 11 A (continuous) 13 A (up to 5 sec) |
Load indicator | Yes The option of adjusting the brightness of the LED frame of the device (high or low) |
Device energy consumption | Less than 1W |
Operation modes | Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020) Bistable |
Contact state (firmware version 5.54.1.0 or higher) | Normally open Normally closed |
LED indication | Adjustable (LED frame, 7 colours) |
Adjustable pulse duration (firmware version 5.54.1.0 or higher) | 0.5–255 sec |
Jeweller radio technology | Communication range with central unit — up to 1,000 m in an open space Two-way communication between devices Operating frequencies: 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz (depends on the region of sale) Self-adjusting RF output power — up to 25 mW Block encryption with floating key Device authentication Verification of each communication session Detector scanning period from12 to 300 sec |
Anti-sabotage | Protection against fraud Jamming detection |
Remote setting and testing | + |
Operating temperature range | from -10°С to +40°С |
Operating humidity | Up to 75% |
Protection class of body | IP20 |
Dimensions | 65.5 x 45 x 45mm |
Weight | 58g |
Service life | 10 Years |
Warranty | Replacement and repair for a period of 24 months of the date of sale |
