Ajax Transmitter
R1,049.00 Incl. VAT
- Power supply output: 3.3 VDC
- Battery life: up to 5 years
- Up to 1700m in an open space (in a perfect environment)
- Operating frequencies – 868.0 – 868.6 MHz
- Dimensions: 100 × 39 × 22 mm
Description

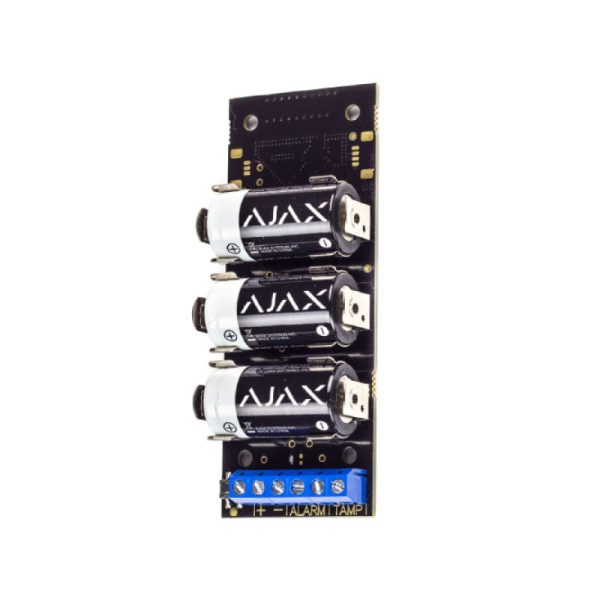

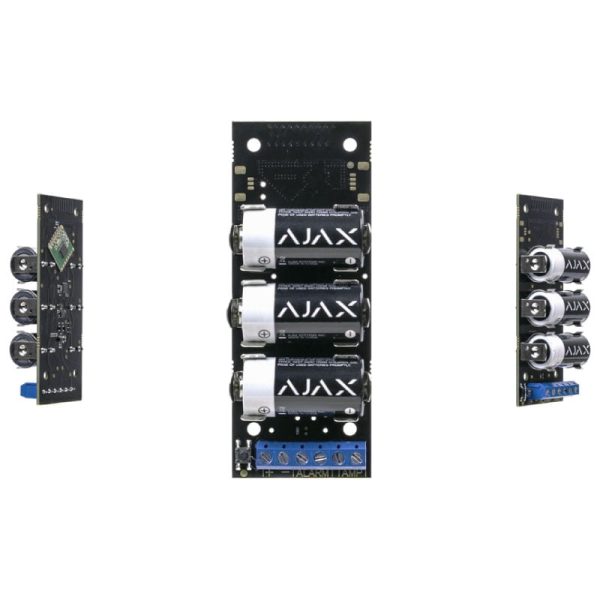

Ajax Transmitter – Wireless Module for 3rd-party Integration
Wireless module for the wireless integration of 3rd-party outdoor motion detectors, IR beams, electric fence energisers and any third-party devices with wired output to the Ajax security system.
Description:
- Ajax wireless transmitter for 3rd-party detectors
- Input for wired connection of outdoor motion detectors, IR beams and electric fence energisers

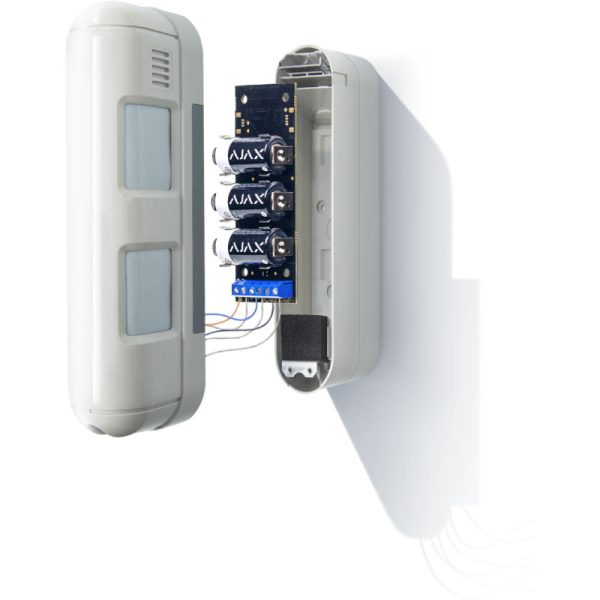

- Fits in most popular wireless outdoor detectors – In some instances, a sealed outdoor enclosure may be required
- Tamper alarm for Transmitter and external detector
- Easy installation and activation
Ajax Transmitter User Manual
Additional information
| Weight | 74 g |
|---|---|
| Dimensions | 100 × 39 × 22 mm |
Technical Specifications
| Classification | Module for third-party detector integration |
| Device type | Wireless |
| Installation method | Indoors/outdoors |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Alarm input | 1 |
| Tamper input | 1 |
| Power supply current | Terminals +/− |
| Power supply output | 3.3V |
| Battery charge indication | Available |
| Adjustable alarm types | Intrusion Fire Medical help Panic button Gas |
| Alarm signal delivery time | 0.15 s |
| Power supply | Battery: Three CR123A batteries, Power supply voltage: 3V |
| Battery life | Up to 5 years |
| Jeweller radio technology | Communication range with central unit — up to 1,600 m in an open space Two-way communication between devices Operating frequencies — 868.0 – 868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s |
| Temperature sensor | Available |
| Operating temperature range | -25°С to +50°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Accelerometer to detect removal |
| Remote setting and testing | + |
| Dimensions | 100 x 39 x 22mm |
| Weight | 74 g |
| Warranty | Replacement and repair within 24 months of the date of purchase. Batteries are not covered under the warranty |
| Service life | 10 Years |
| Complete set | Transmitter Three CR123A batteries (pre-installed) Installation set User’s guide |
